Information About Photo

Display photo properties and tracking information.

This screen is available from Photo View Menu | Information about photo.

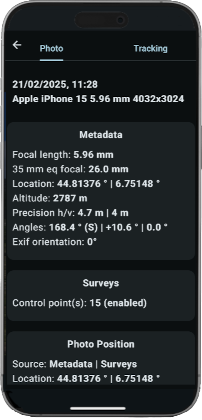

Photo information

Photo​

Photo properties.

General​

  • Acquisition date
  • Exif make/model and image size

Metadata​

Initial photo data:

  • Focal length: focal length in mm
  • Location: latitude and longitude (decimal degrees)
  • Alitude: MSL altitude
  • Precision: location and altitude precision in meters
  • Angles: azimuth, pitch and roll in degrees (ENU)
  • Exif orientation: image rotation
  • Camera data source

Surveys​

Details about control points (when using control points):

  • Total number of control points, and number of control points used for calibration.

Photo Position​

Adjusted photo location and orientation:

  • Source
  • Location: adjusted latitude and longitude (decimal degrees)
  • Alitude: adjusted altitude (MSL)
  • Angles: adjusted azimuth, pitch and roll in degrees (ENU)

Optical Parameters​

Adjusted photo optical properties:

  • Source
  • 35 mm equivalent focal length
  • Field of view: diagonal, horizontal and vertical field of view in degrees
  • Principal point offset percentage (if any)
  • Distortion percentage (if any)

Statistics​

(when using control points)

  • Number of control points used for statistics.
  • Reference precision (rms) in pixels
  • Reprojection error (rms) in pixels

Tracking​

Tracking information.

Position on Photo​

Current position on photo:

  • Status
  • Distance: distance from camera
  • Local resolution: ground sampling distance at current location
  • View height: height difference from camera

GPS/Orientation​

Current location and orientation:

  • Location: latitude and longitude (decimal degrees)
  • Alitude: altitude (MSL)
  • Precision: location and altitude precision in meters
  • Azimuth: heading in degrees
  • Pitch: pitch in degrees
